What Are Industrial Drives?
You see the term "industrial drive" on spec sheets and supplier catalogs constantly. But nobody ever explains what it actually does -- until now.
Think of an industrial drive as the "brain and muscle" between your power supply and your motor. Without it, your motor would only know two states: full on or full off. With it, your motor can follow precise commands -- move 5mm, hold position, ramp up to speed in 0.3 seconds, stop without jerking.
That gap between "on/off" and "full precision" is exactly what drives solve. And once you understand the different types, you'll make far better sourcing and engineering decisions. Let me walk you through each one.
What Are the 4 Types of Drives?
You've been told there are many types of motor drives. But which ones actually matter in real industrial work? The confusion costs engineers time and buyers money.
🔵 Type 1: Servo Drives
A servo drive works with a servo motor and a high-resolution encoder. It runs a three-loop closed-loop system -- position loop, velocity loop, and current loop -- all at the same time.
This makes it the top choice for advanced motion control tasks. Think CNC machine tools, industrial robots, laser cutting heads, and semiconductor pick-and-place equipment.
Servo drives give you microsecond-level response. A small servo motor with encoder paired with the right drive can hold position accuracy down to a single pulse. That's why every serious servo products company and machine builder uses them in precision stages.
⚙️ Key trait: Full closed-loop control. Fastest dynamic response. Best for precision.
🟢 Type 2: Stepper Drives
A stepper drive -- sometimes called a stepper motor driver -- converts pulse signals into discrete rotational steps. Each pulse moves the motor one step. No encoder is needed for basic open-loop control.
This is stepper motor driver explained in one sentence: it counts pulses and moves the motor one step per pulse.
The drive also supports microstepping, which divides each full step into smaller increments. This improves motion smoothness and resolution. A stepper motor driver for CNC routers, industrial additive manufacturing, and engraving machines almost always uses microstepping for smoother cuts.
Many stepper motor manufacturers and every stepper motor driver factory offer standard and high-subdivision stepper drives. You can also find custom stepper motor and OEM stepper options if you need specific torque, frame size, or connector type.
📦 Key trait: Open-loop simplicity. Cost-effective. Great for CNC and 3D printing.
🟡 Type 3: Variable Frequency Drives (VFDs)
A VFD controls an AC induction motor by changing its input frequency and voltage. You change the frequency -- you change the motor speed. Simple as that.
VFDs are the workhorses of energy saving. Fans, pumps, compressors, and conveyors all benefit. Running a pump at 80% speed instead of 100% can cut energy use by up to 50%.
They do not need an encoder in most setups. Control precision is moderate. They are not built for tight position control, but they are very good at smooth, wide-range speed adjustment.
💡 Key trait: Speed control for AC motors. Energy-saving. No encoder required.
🔴 Type 4: DC / BLDC Motor Drives
BLDC (Brushless DC) drives use electronic commutation instead of physical brushes. This makes them more efficient and longer-lasting than brushed DC drives.
BLDC drives are common in drones, e-bikes, EV powertrains, and industrial fans. They need rotor position feedback (usually a Hall sensor or encoder) to commutate correctly.
Brushed DC drives still appear in simpler applications -- small conveyors, basic actuators -- but they are gradually being replaced by BLDC alternatives in most new designs.
🔋 Key trait: High efficiency. Long lifespan. Common in mobile and EV applications.
🗂️ Quick Comparison Table
| Drive Type | Motor Type | Feedback Needed | Best Use Case |
|---|---|---|---|
| Servo Drive | Servo (PMSM) | ✅ High-res encoder | Robots, CNC, precision |
| Stepper Drive | Stepper | ❌ Open-loop (optional) | 3D print, engraving, CNC |
| VFD | AC Induction | ❌ Optional | Fans, pumps, conveyors |
| BLDC Drive | Brushless DC | ✅ Hall sensor/encoder | Drones, EVs, fans |
If you need advanced motion products that cover all four categories under one roof, working with a single industrial automation source factory -- rather than mixing four different suppliers -- saves a lot of integration headache.
Looking for Factory-Direct Servo or Stepper Systems?
Sefowod provides fully synchronized Drive + Motor + Controller packages with <0.3% defect rates. Guaranteed batch consistency for B2B distributors and OEMs.

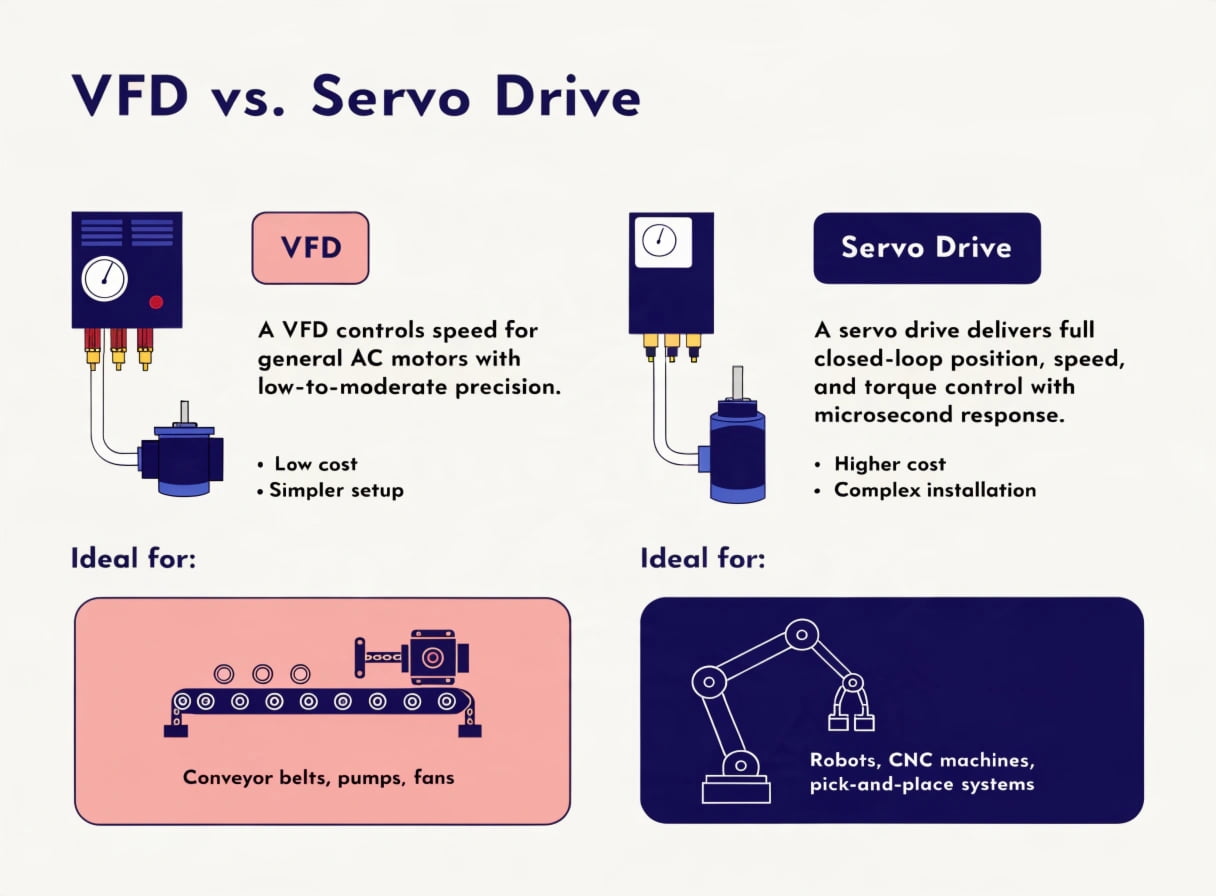

What Is the Difference Between a VFD and a Servo Drive?
People mix these two up all the time. Both control motor speed. But they are built for completely different jobs -- and using the wrong one is a costly mistake.
⚖️ 6 Key Differences: VFD vs. Servo Drive
Let me walk you through what actually separates these two in practice.
1. Control Target
A VFD focuses on one thing: speed. You tell it "run at 40 Hz" and it does. It doesn't care about exact position or torque.
A servo drive runs three control loops simultaneously. It controls position, velocity, and torque -- all at once. This is what makes advanced motion control possible in robotics and precision machining.
2. Feedback and Closed-Loop Control
VFDs are usually open-loop (V/F control). Speed accuracy is around ±0.5-1%. They may optionally add a basic encoder for simple speed feedback.
Servo drives require a high-precision encoder on the motor shaft. They close the loop in real time. Position accuracy can reach ±0.01% or even pulse-level. An integrated servo motor and drive unit (also called an integrated servo motor and controller) combines both into a single housing -- you can see examples here.
3. Motor Compatibility
A VFD works with standard AC induction motors.These motors are highly cost-effective and widely available.
A servo drive only works with its matched servo motor (usually a Permanent Magnet Synchronous Motor, or PMSM). A compatible servo motor replacement must match both the drive's power rating and the encoder interface. This is why many engineers look for a universal servo drive or an industrial servo drive alternative when upgrading older machines.
4. Dynamic Response Speed
VFDs respond in the millisecond range. They are designed for continuous, smooth running -- not economical starts and stops.
Servo drives respond in microseconds. They can reverse direction and reach full torque in under a millisecond. This is critical for pick-and-place arms, printing registration, and servo press applications.
5. Low-Speed Torque
VFDs lose torque output at very low frequencies. Below about 5 Hz, an induction motor without vector control gets weak and unstable.
Servo drives maintain 100% rated torque from zero speed. This is why a servo is chosen for winding machines, indexing tables, and other tasks that need full torque at a standstill.
6. Cost and Commissioning Complexity
VFD setup is economical and simple, while Servo drives demand tuning across three control loops. Review the breakdown matrix below to evaluate total lifecycle cost vs precision requirements.
| Factor | VFD | Servo Drive |
|---|---|---|
| Unit Cost | Lower | Higher |
| Motor Cost | Low (standard AC motor) | Higher (servo motor + encoder) |
| Setup Complexity | Simple (set frequency, ramp time) | Complex (tune 3 control loops, inertia matching) |
| Maintenance | Easy | Needs encoder care |
| Best Fit | Speed-only applications | Precision motion applications |
💬 "I always tell buyers: if you need the motor to go somewhere specific and stop exactly there -- use a servo. If you just need the motor to spin at roughly the right speed -- use a VFD."
When you source from servo drive manufacturers in China, look for companies that offer full application support, not just hardware. Good servo motor distributors will help you match the drive to your load inertia and motion profile.
For a complete range of servo systems, you want a supplier that stocks both the drive and the matched motor. That saves you from compatibility surprises during commissioning.
What Is a Drive in Industry?
The word "drive" covers more than just electronics. In factories, "drive" can mean any device that converts a power source into controlled mechanical motion -- and not all of them use electricity.
⚡ Type 1: Electric Drives (The Most Common)
Electric drives are the backbone of modern manufacturing. They include every type of motor drive system -- servo, stepper, BLDC, and VFD.
Their advantages are hard to beat:
- High control precision -- down to sub-millimeter positioning
- Fast response -- milliseconds to microseconds depending on type
- Clean and safe -- no hydraulic oil leaks, no fire risk
- Easy automation -- integrate directly with PLC, HMI, or EtherCAT networks
A PLC HMI all-in-one system can send commands directly to a servo or stepper drive over a digital bus. This is how modern turnkey automation systems are built -- one controller talking to multiple drives across a production line. You can explore full turnkey packages here.
As a servo motor wholesale B2B supplier and industrial automation parts supplier, we see that most new factory automation projects use electric drives as the first choice. The reason is simple: they're the easiest to control, program, and maintain remotely.
🔑 Best for: Precision, speed control, automation integration, clean environments.
🛢️ Type 2: Hydraulic Drives
Hydraulic drives use pressurized oil to move a cylinder (linear motion) or a hydraulic motor (rotary motion).
Their main advantage is raw power density. A hydraulic cylinder the size of your forearm can produce hundreds of tons of force. This is why injection molding machines, excavators, and metal presses still use hydraulic drives.
Downsides to be aware of:
- Oil leaks are a constant maintenance issue
- Systems require strict fluid temperature and cleanliness control
- High energy waste due to constant pump running
- Not suitable for clean-room environments
🔑 Best for: Extreme force output, heavy-duty machinery, construction equipment.
💨 Type 3: Pneumatic Drives
Pneumatic drives use compressed air to move cylinders or rotary actuators. You find them everywhere in light manufacturing.
They are highly cost-effective. A pneumatic cylinder can snap a gripper open and shut in milliseconds. But you can't easily control the exact stop position -- it's end-to-end travel only.
Typical pneumatic drive applications:
- Robotic grippers and clamps
- Food packaging machinery
- Valve actuation
- Part ejection in stamping presses
🔑 Best for: Fast, simple on/off motion. Light loads. Low-cost actuation.
📊 Industrial Drive Types at a Glance
| Drive Type | Power Source | Typical Force/Torque | Precision | Best Application |
|---|---|---|---|---|
| Electric (Servo/Stepper/VFD) | Electricity | Low to Medium | ⭐⭐⭐⭐⭐ | Automation, CNC, robots |
| Hydraulic | Pressurized oil | Very High | ⭐⭐⭐ | Presses, excavators, molding |
| Pneumatic | Compressed air | Low to Medium | ⭐⭐ | Grippers, packaging, valves |
For most buyers working with an industrial automation parts supplier or sourcing through servo motor wholesale B2B channels, electric drives are the answer. They cover the widest range of applications at the best cost-to-performance ratio.
If you want to see what a full electric drive ecosystem looks like -- from stepper and servo to BLDC drives and beyond -- the Sefowod product catalog covers it all. We also offer OEM customization for teams that need an equivalent stepper motor driver or industrial servo drive alternative built to their spec.
