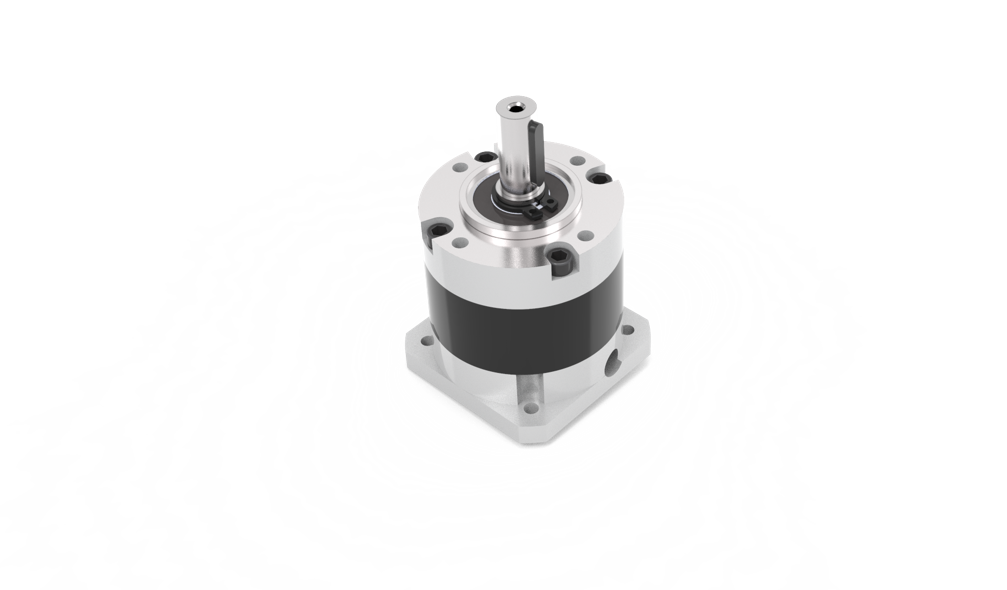

NEMA 17 (42mm) High-Precision Planetary Gearbox (SPXLRG42-L1 Series)
- CE
- RoHS
- ISO9001
Engineered for Uncompromising Stability & Zero Downtime
test test test test test test test test test
Core Technical Specifications
| Shaft Shape | round |
|---|---|
| Precision (arcmin) | 25 |
| Reduction Ratios | 4:1, 5:1, 10:1 |
| Matched Motor Series | 42 |
| Nominal_output_torque: | 9 Nm (for 4:1 and 5:1 ratios) / 5 Nm (for 10:1 ratio) |
| Sudden_stop_torque: | 2x Nominal Torque |
| Backlash: | ≤30 arcmin (Rated ≤25 arcmin on standard L1 configuration) |
| Efficiency: | 90% at full load |
| Nominal_input_speed: | 1000 rpm |
| Max_input_speed: | 2000 rpm |
| Average_lifespan: | 20,000 hours |
| Noise_level: | ≤55 dB |
| Radial_force: | 300 N |
| Axial_Force: | 100 N |
| Lubrication: | Permanent Lubrication |
| Protection_level: | IP54 |
| Working_temperature: | -20°C to +150°C |
| Weight: | 0.25 kg |
| Additional_specifications: | Output shaft features a round common flat key (GB1096-79 standard). Output shaft diameter: 8mm. Arbitrary installation orientation supported. |
Seamless Integration Data

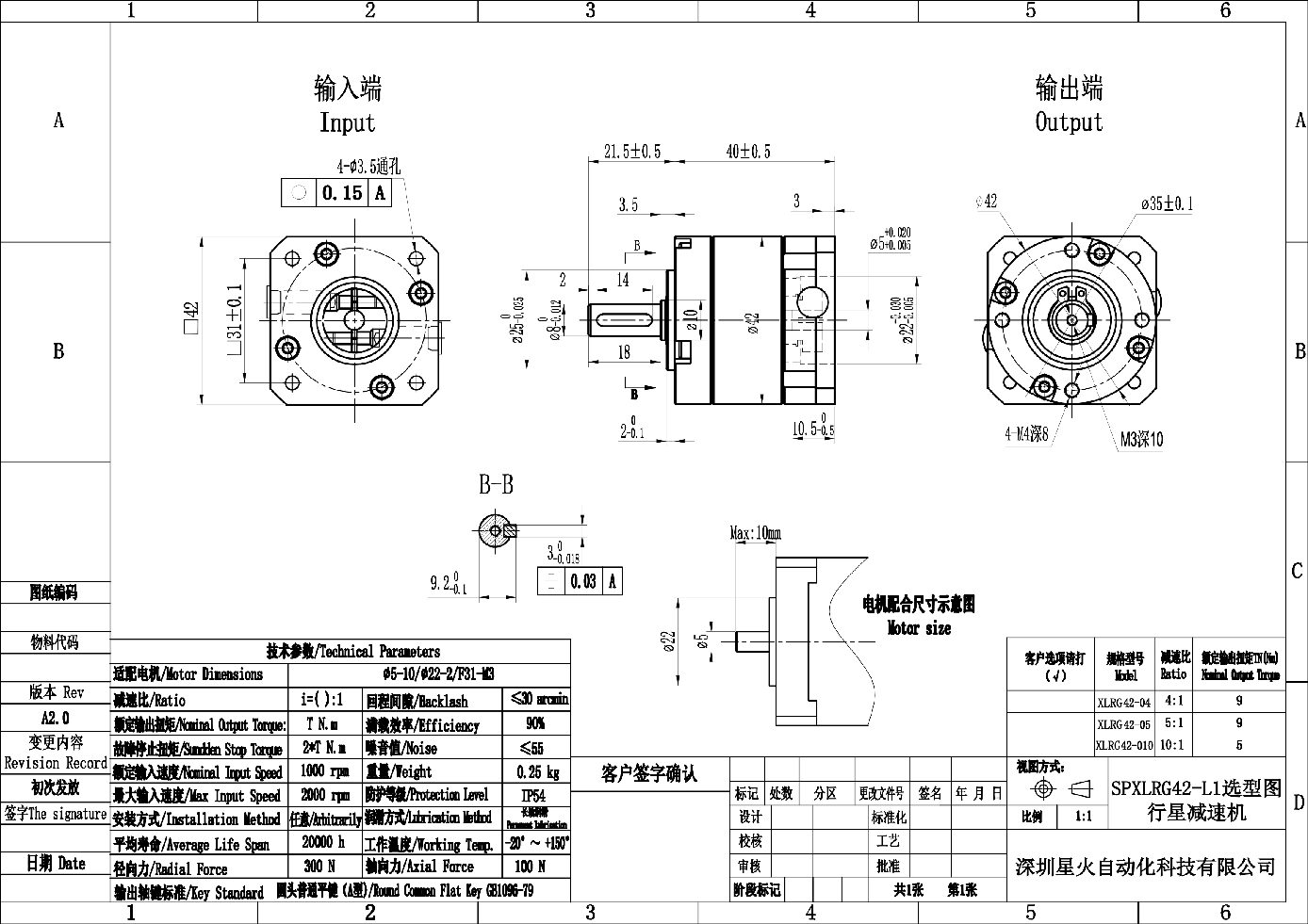

2D CAD Dimensions
Wiring & Pinouts
